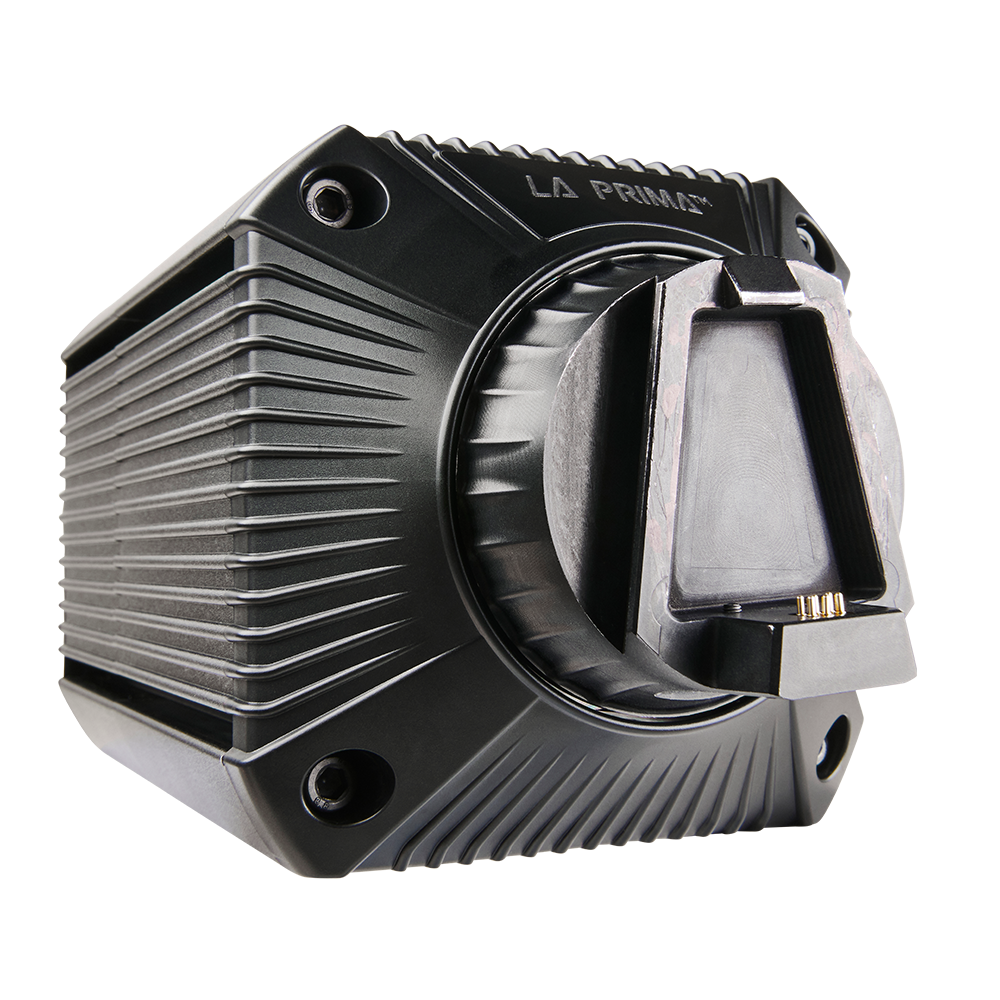

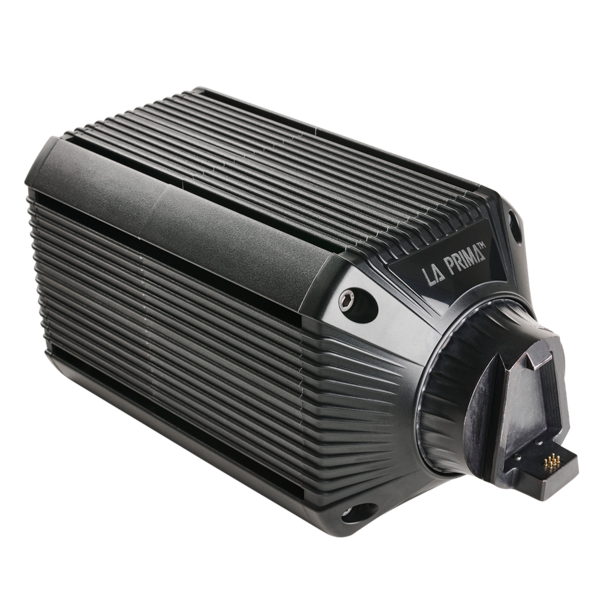

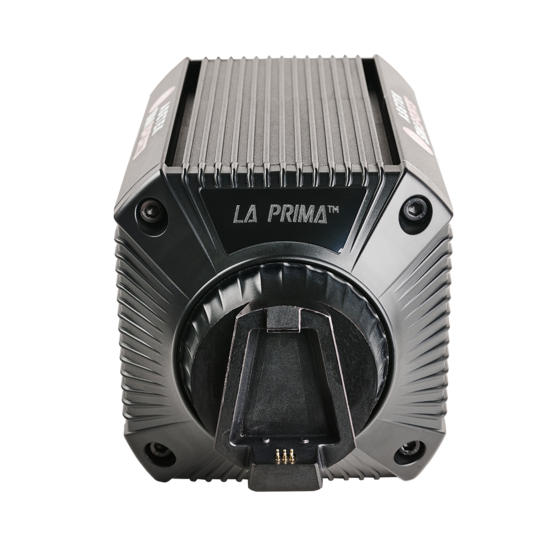

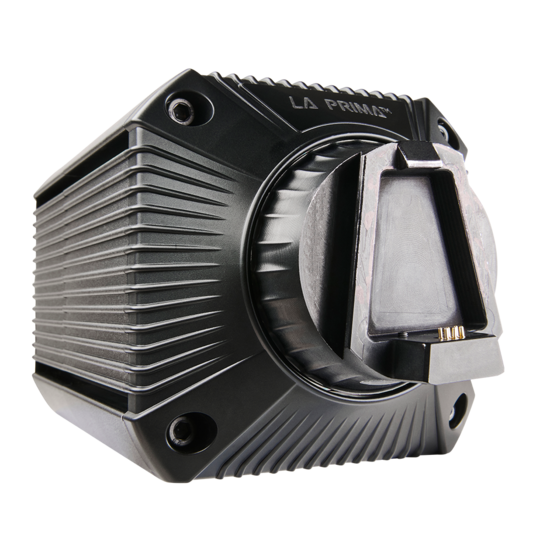

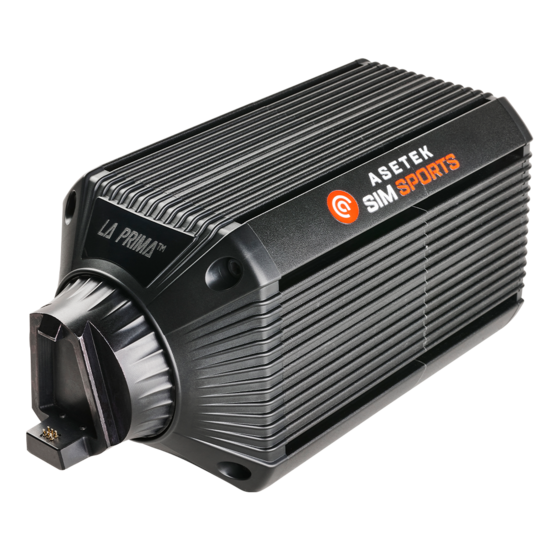

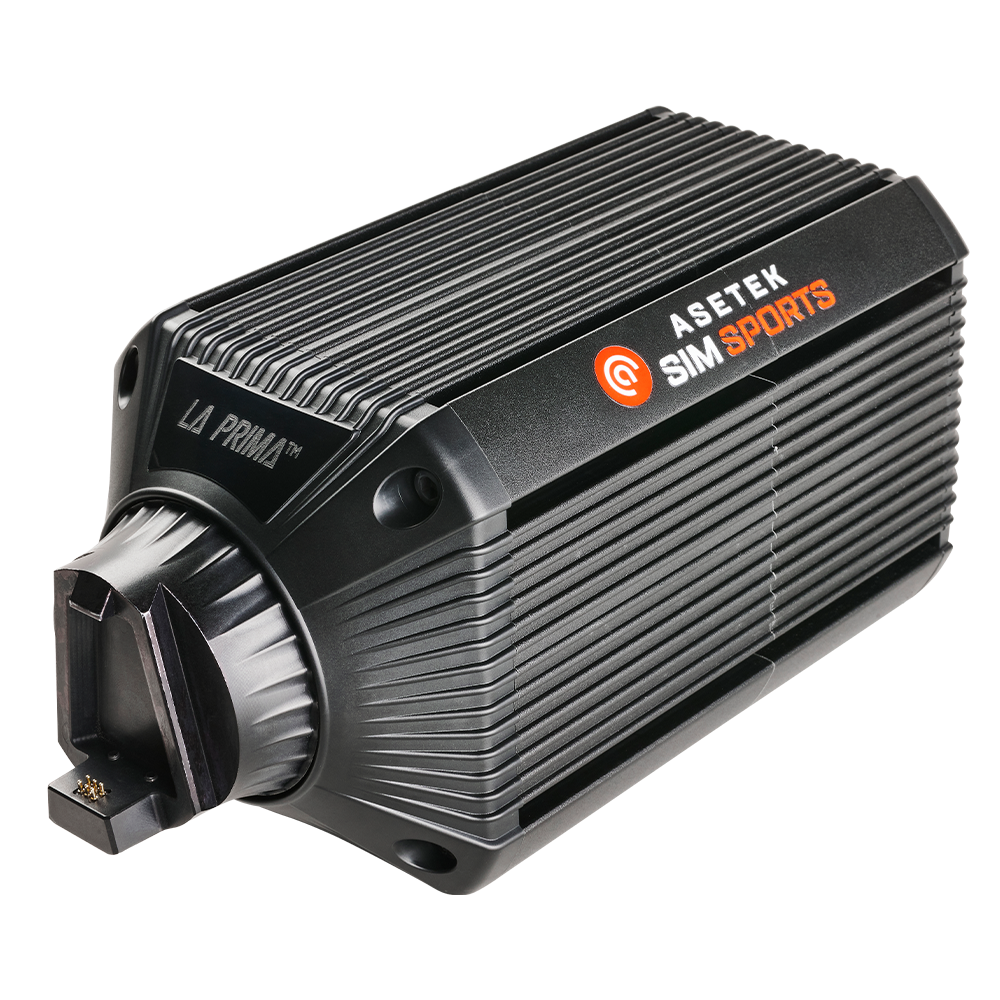

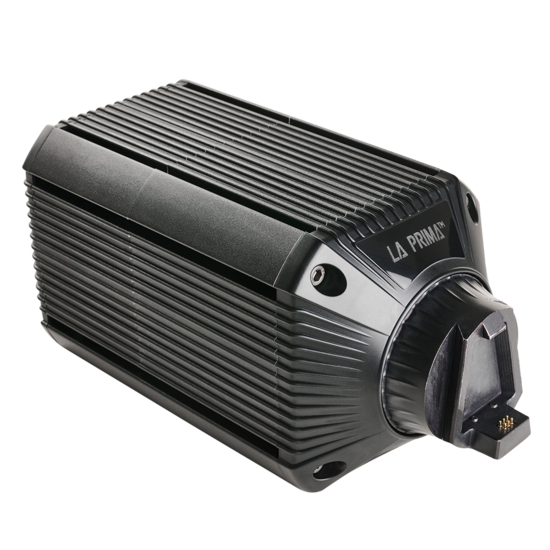

Asetek La Prima base
Asetek La Prima base
Asetek La Prima base
Asetek La Prima base
Asetek La Prima base
Une question ? Demandez-nous!
Asetek La Prima base

Asetek La Prima base

0 Avis
€ 779,00
Prix par pièce
Stock limité
Options
Asetek La Prima wheel
Asetek La Prima wheel
€ 419,00
remove add
Commander
Liste des favoris

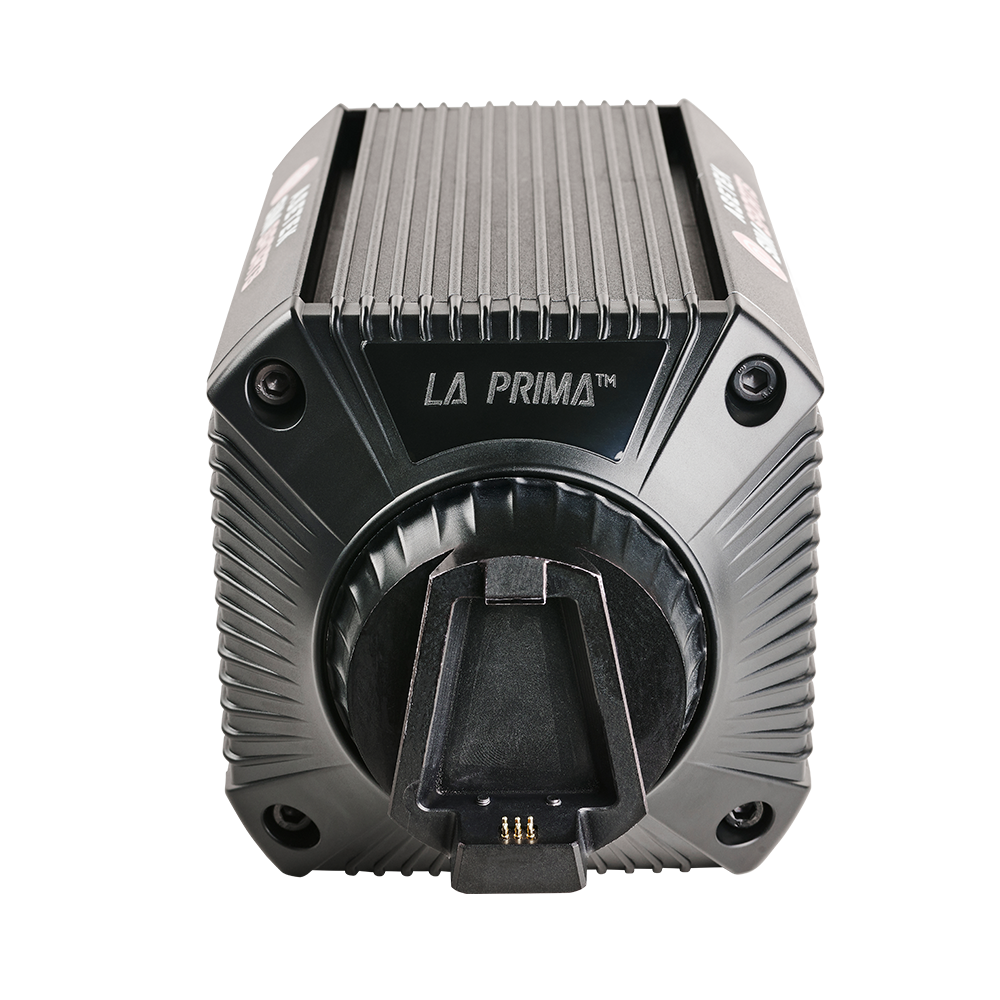

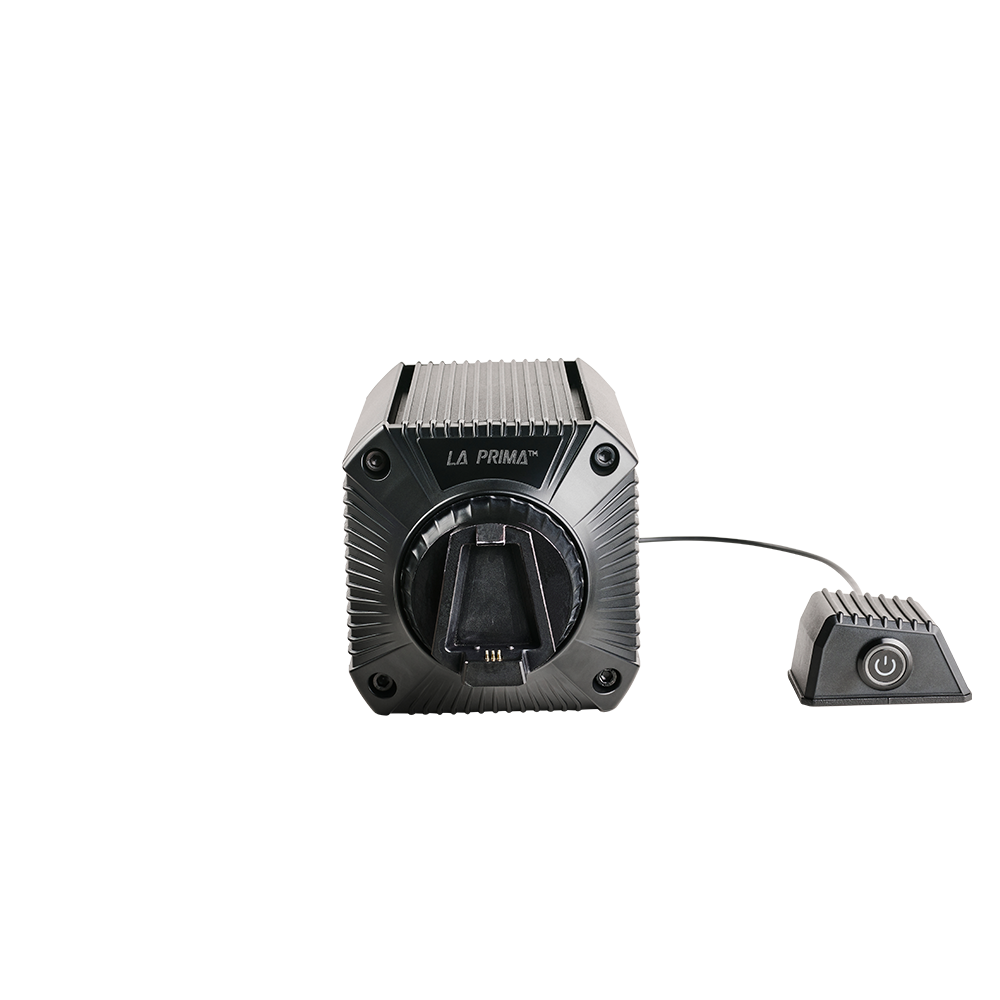

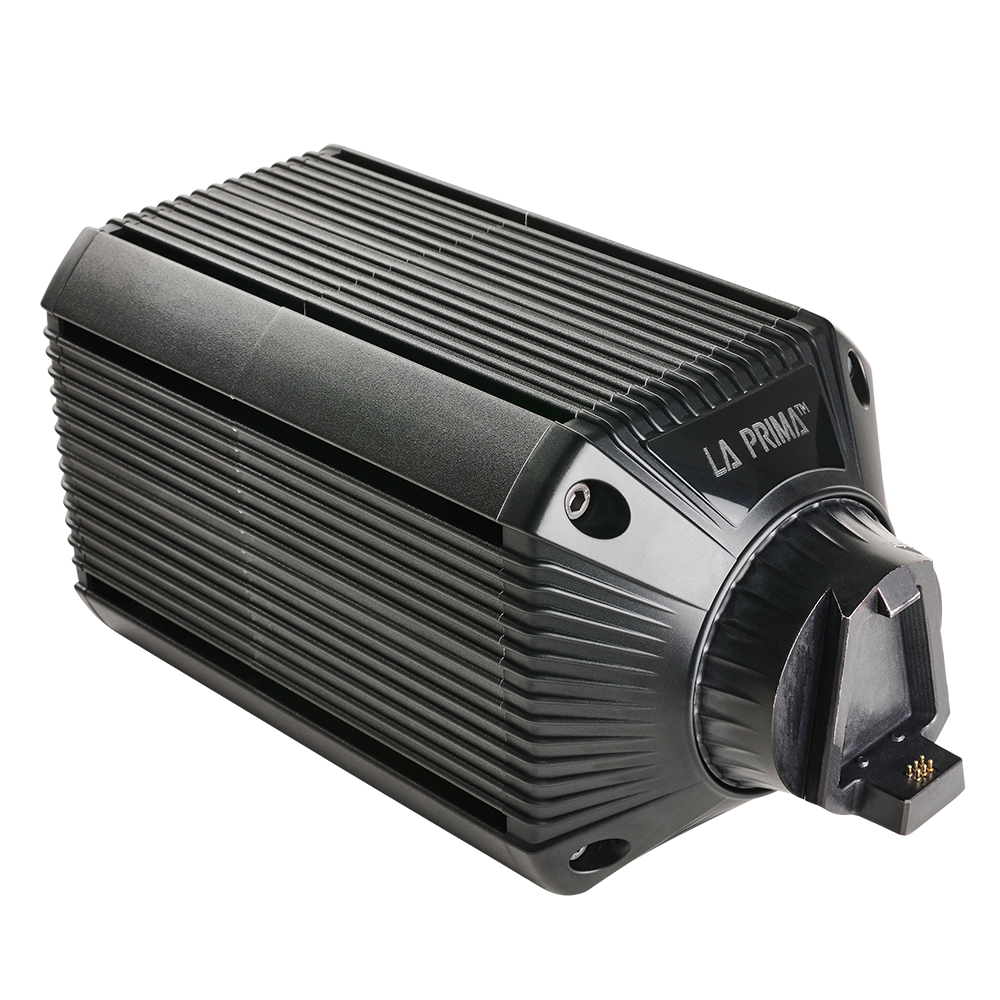

Asetek La Prima base

Description du produit

What others would call high-end, we make possible as entry-level!

When we set out to develop our range of direct drive wheelbases, we wanted to develop the best sim racing wheelbases on the market measured on all parameters but without breaking the bank. We had greater aspirations than just reselling a standard industrial servo motor and then trying to adapt everything else around it. It was a tough task but like with our award-winning pedals and steering wheels, we started from a clean sheet.

We bought and implemented IP from market-leading vendors, we teamed up with Mige, a well-known motor supplier to sim racing, and after years of development of grounds-up electronics, software, firmware, mechanics, cooperation, design, test, and validation, we are now ready! Please meet the Invicta™ 27Nm, the 18Nm Forte®, and the 12Nm upgradeable La Prima™ wheelbases.

True to the spirit of our other products, at Asetek SimSports®, you will get the same quality, durability, engineering excellence – and most importantly – the same user experience, independent of whether you buy our entry-level La Prima™ series or our top-tier Invicta™ products. Each wheelbase from 12-27Nm features a high-end 22-bit encoder, slipring, and electronics providing an unrivaled driving experience, leaving cogging and lagging in ancient history. All vital parts are of course made of aluminum and steel.

All Asetek SimSports® wheelbases provide smooth, super responsive, and precise feedback to the driver, where you will feel even the smallest bumps and curbs on the road. As an example – each of our wheelbases has a resolution of 0,000085 degrees or roughly 4,000.000 steps in just one revolution of the wheel! In other words, with an Asetek SimSports® wheelbase, you do not have to choose between a true high-fidelity driver experience and a low price. You can get it all!

As all wheelbases are designed from the ground up, we have been able to develop an extremely compact and flexible form factor accommodating any rig and need.

In its simplest mounting form (default from factory), the bases come with T-nuts pre-installed in bottom groves enabling the motor to slide back and forth in your rig without installing long and expensive steering wheel spacers that ultimately can compromise the life and reliability of your wheelbase. For all wheelbases, we have developed mounting options for any rig ranging from a table clamp solution, bottom mount, side mount and all the way to our integrated front mounts.

All Asetek SimSports® wheelbases feature our own quick release that is as easy to use as shifting gears – literally, as to disconnect the wheel from the base, all you have to do is to press a paddle, and the wheel will be in your hands! Needless to say, we are not relying on wireless signals, batteries that need to be charged or cables that can break or fall off. Everything is included in our easy-to-use no-play quick release.

We do realize that many sim racers have personal preferences for their steering wheel and instead of locking you into a specific eco-system, we have teamed up with a number of leading wheel vendors that will offer native support for the Asetek SimSports® Direct Drive wheelbases, meaning you can rest assured that you will be buying intp a flexible and ever-expanding ecosystem.

Our relentless focus on Performance and Precision without breaking the bank, gives the Asetek Simsports® wheel a competitive edge, allowing you to get down to the tarmac and be one with your virtual racecar. Also providing you with the quality and durability you have come to expect from Asetek. Designed to last. Engineered, assembled and tested in Denmark!

Tech Specs

  • Exquisite, radical, and minimalistic Danish industrial design
  • Made in Denmark
  • Anodized extruded aluminum housing
  • Direct Drive Force Feedback
  • Max torque 12Nm peak/holding*
  • Peak Slew rate: 4 Nm/ms
  • Encoder resolution: 22bit / 0,000085 degrees / 4.000.000 steps
  • Asetek Simsports® Quick Release
  • 180w power supply
  • Slipring designed and tested to +200.000.000 rotations

*all Asetek’s wheelbases are built grounds up with sim racing applications in mind. Holding torque is defined as up to 40 seconds continuously, which covers even the most extreme sweeper curves etc. ranging from rally to oval and road racing.

Software Features

  • Setup and save profile presets – Customize your settings to fit your car, track, and conditions
  • Adjust steering range, bumpstop hardness, and bumpstop range
  • Adjust Overall Force, Basic Damping, and Basic Smoothing

Dimensions

  • Height: 133mm
  • Width: 132mm
  • Length (Incl. Quick Release): 293mm
  • Weight: 8.5kg

Description produit

Base moteurs Asetek

Asetek QR Wheelbase side only
Max Torque 12 Nm
Slew Rate 4 Nm/ms
Torque Off Button x

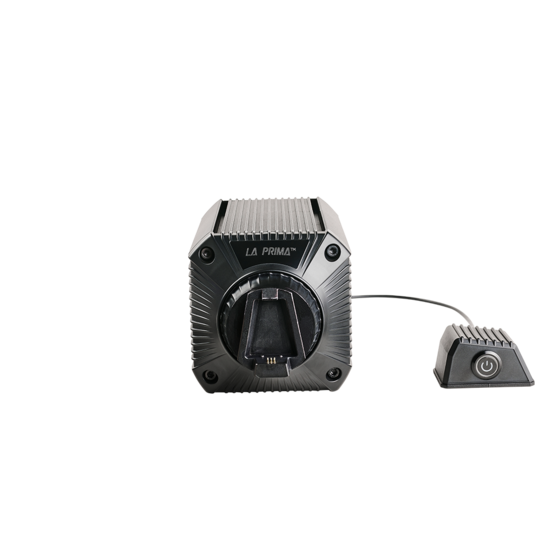

Power On/Off Button Included
Power Supply 180 W
Dimensions 133 mm x 132 mm x 293 mm
Mounting Holes 4x M6 threaded T-nuts
Mounting Hole Pattern Width 87 mm
Mounting Hole Pattern Length Variable length 30 mm to 160 mm
Weight 8,5 kg
Operating Temperature 0°C to 40°C, room temperature
Built-in 5 ports USB hub
ARGB Led Strips x
